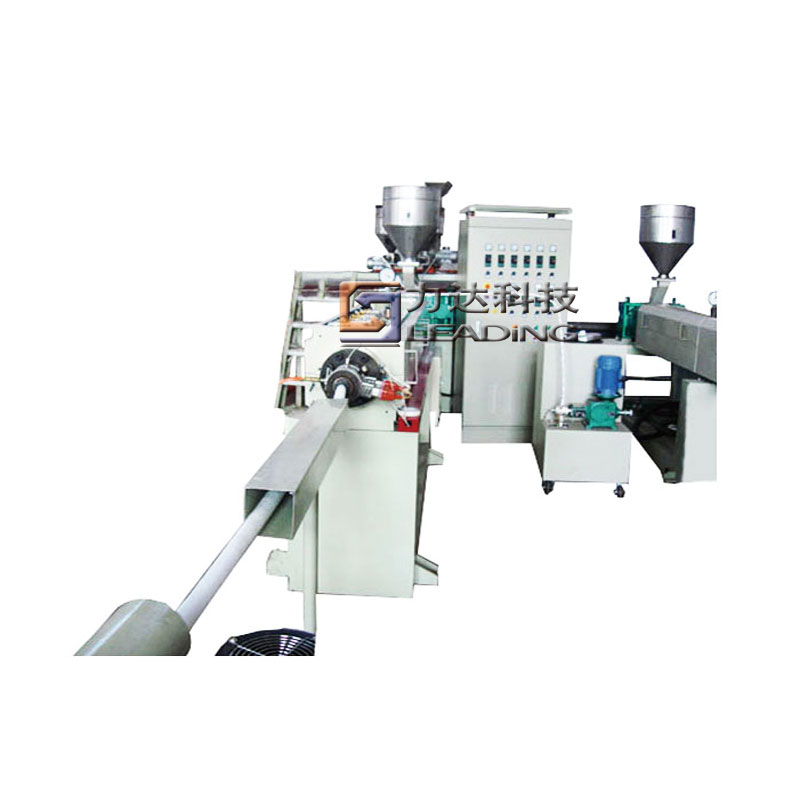

PE Foamed Pipe Plastic Extruder Machine
Product introduction
EPE foam pipe is a kind of new-type foam material and it is widely used in the jacket of air conditioner, pipeline heat insulation, toy guardrail and recreation places etc. due to its high foam ratio, good elasticity and heat preservation. As a kind of new-type filling and ornament material, EPE foam net is a kind of new soft packing material. It is widely used for the package of glass products, precision, instrument, and various kinds of fruits.
Major design data
Resin applied: LDPE
Extruding capacity:approx 17-22kg/hr
The range of foam pipe diameter:15mm-40mm
Speed of the manufacture line:10—40m/min
Demands of Public Works
Total power: About 42kw
Power supply: 3 phase 380V, 50Hz
Main motor:11KW
Cooling water :80L/H
Compressed air: 0.2~0.4 m3/min,0.6Mpa
Total weight (approx):3.2T
Mounting size: 15m×1.3m×1.7m
