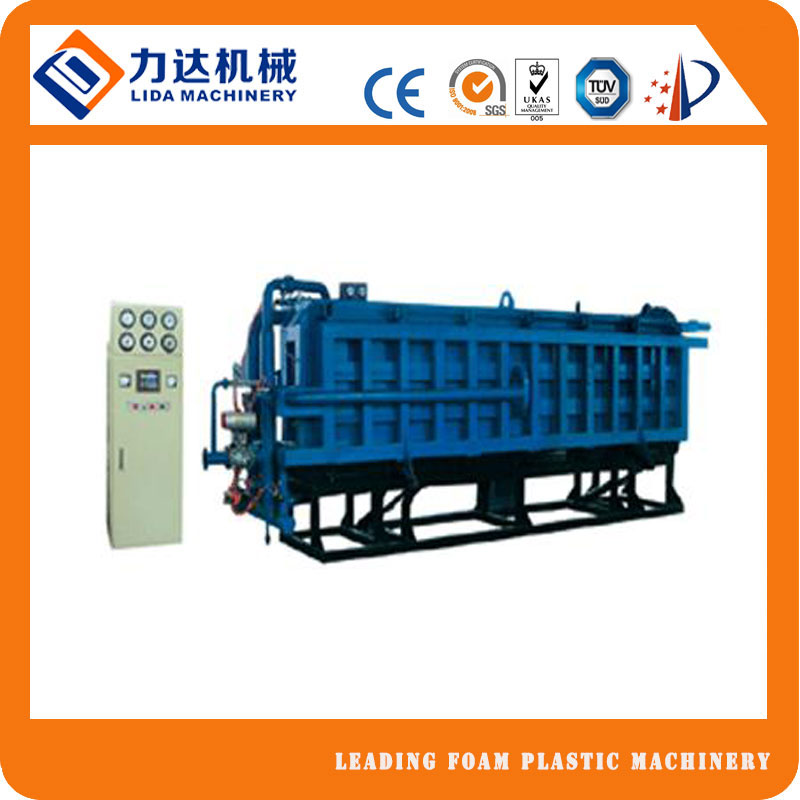

Automatic EPS Block Mold Machine

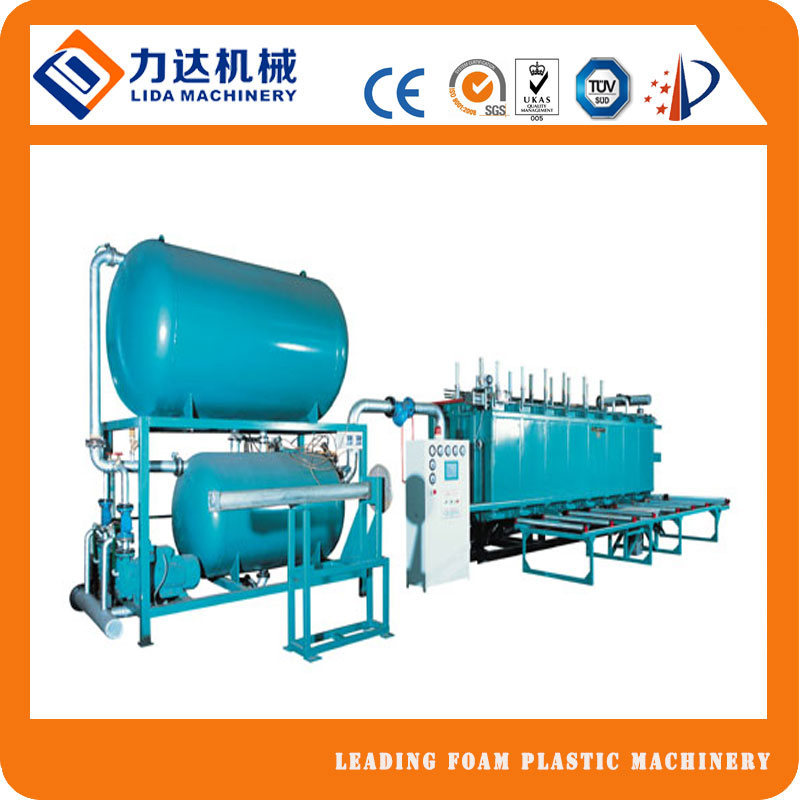

Automatic expanded polystyrene block production line mainly includes three parts:
Main Features:
Using hydraulic system mold clamping, stable and reliable;
Using the programmable control with color touch screen control, easy to operate;
Technical parameters
Item | Unit | LD-PSB-2000 | LD-PSB-3000 | LD-PSB-6000 | LD-PSB-8000 |
Chamber Size | mm | 2040x1020x530 | 3060x1250x630 | 6120x1250x630 | 8160x1250x630 |
Cavity Volume | M3 | 1.1 | 2.41 | 4.82 | 6.43 |
Density | Kg/ M3 | 6–30 | 6–30 | 6–30 | 6–30 |
Steam pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Entrance Diameter for compressed air | mm | 80 | 80 | 150 | 150 |
Entrance for compressed steam | mm | 80 | 80 | 100 | 100 |
Power supply | V | 380 | 380 | 380 | 380 |
Power | kw | 7 | 7 | 15 | 15 |
External size | mm | 3600*2000*2750 | 4500*2150*2950 | 7500*2150*2950 | 9500*2150*2950 |
Weight | kg | 2800 | 4600 | 9600 | 10600 |
